Chem-0

Chem-0 team with the robot arm lab setup

Problem

Most AI agents operate in environments where the action space has already been made symbolic: click a button, call an API, run a command, or choose from a menu. A physical chemistry bench does not provide that abstraction. The system has to deal with cameras, calibration, low-cost servos, plasticware, occlusion, lighting, latency, coordinate drift, contact dynamics, and the gap between a semantic instruction like “grasp the vial” and a reliable physical intervention.

Chem-0 was built to study that gap directly.

Project

Chem-0 is a prototype autonomous robotic chemistry lab built around a practical question: can an AI agent safely operate a low-cost robot arm while using live camera feedback and persistent experiment traces?

The first setup used Chem 1101-style aqueous solution lab equipment, cameras, plasticware, and a pre-assembled Hugging Face LeRobot SO-101/SO-100 follower arm. The scope was intentionally small so the real bottlenecks would show up quickly: calibration, feedback speed, screen-space to world-space estimation, servo overshoot, rigid contact, and evidence capture.

System

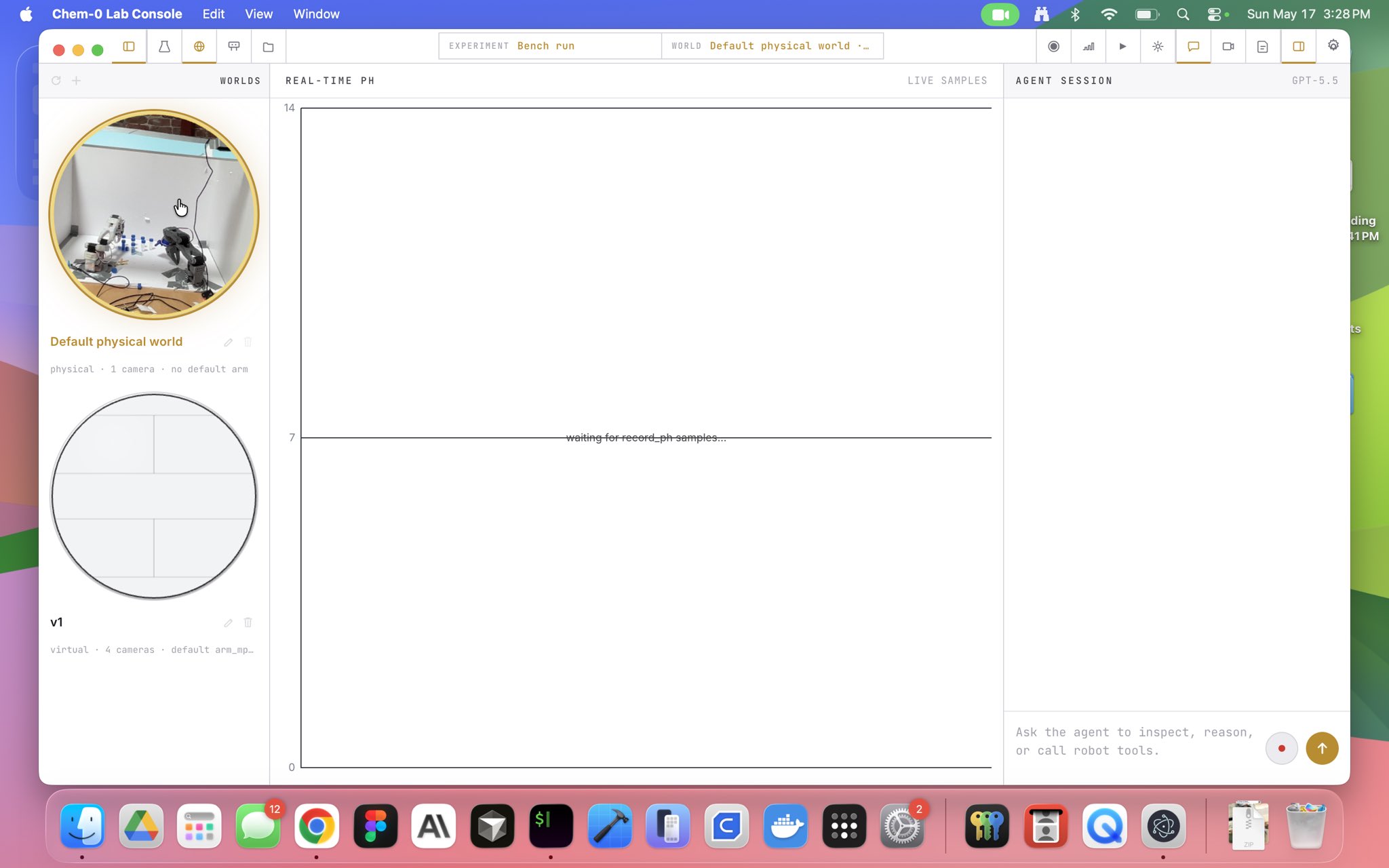

Chem-0 Electron lab console

The system combines:

• SO-101/LeRobot hardware for low-cost arm control.
• Camera and observation tools for visual feedback.
• A Python hardware bridge for LeRobot, OpenCV, placo, and robot calls.
• An MCP interface for tool-based agent control.
• A shared TypeScript backend for experiment state, artifacts, sessions, and persistence.
• An Electron lab console for worlds, robots, cameras, experiments, and review.

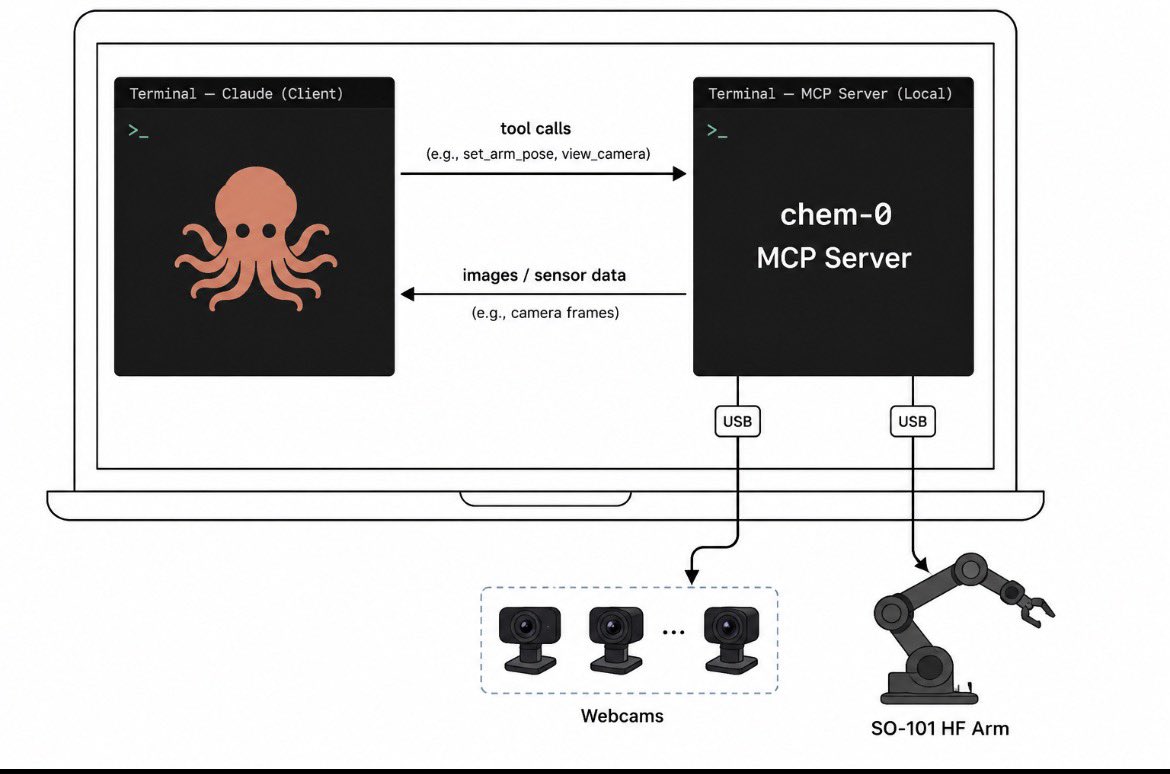

Python MCP server diagram for robot control

The action interface had two layers. Low-level tools exposed direct sensor and motor access, such as camera viewing and joint-space pose control. Higher-level tools exposed Cartesian movement, position queries, experiment logging, and semantic affordances such as vial analysis.

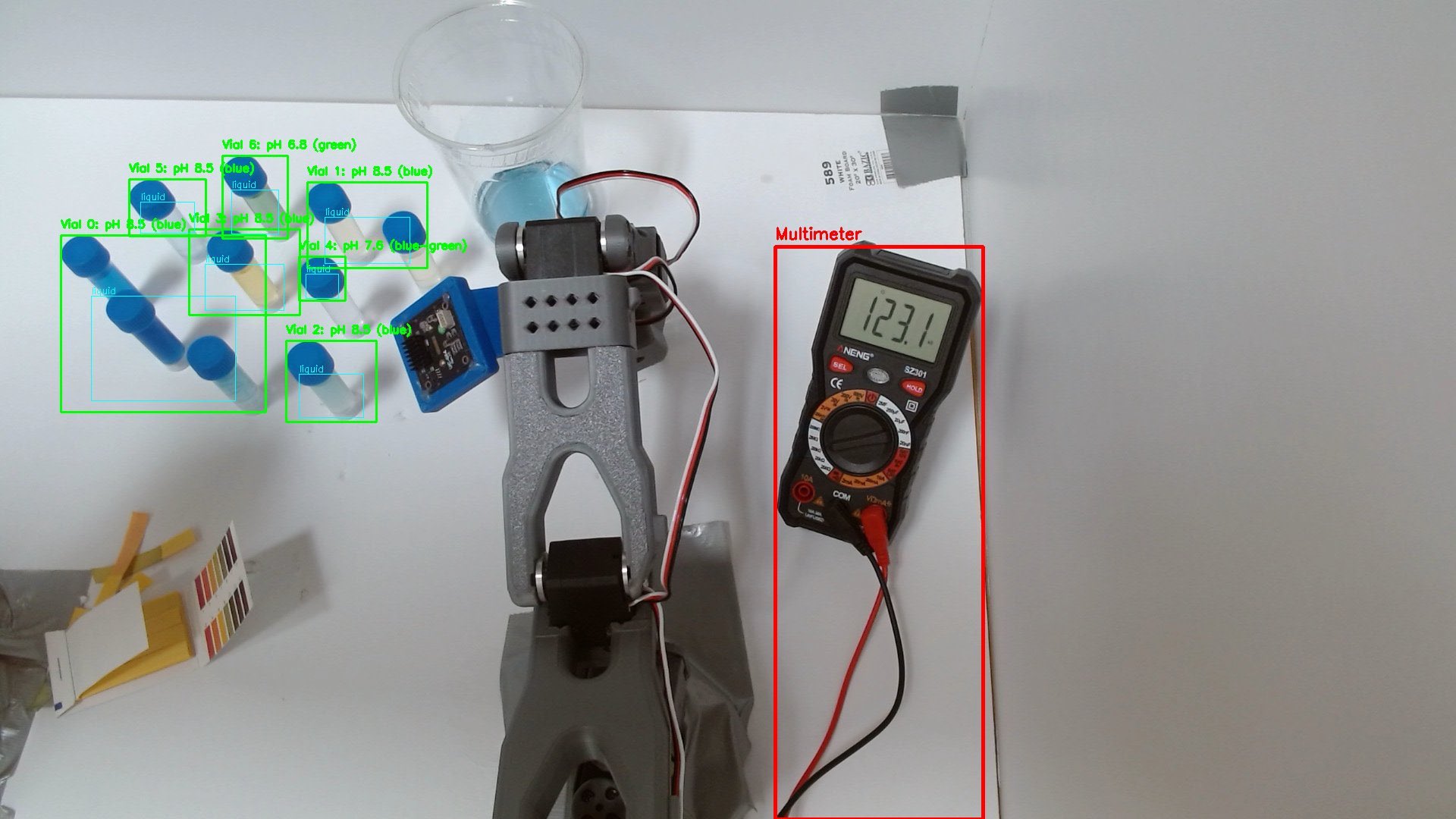

YOLO vial analysis in the higher-level Chem-0 interface

Lab Console

Chem-0 Lab Console became the project’s control and data surface: a place to connect hardware, create experiments, manage worlds, inspect scenes, record artifacts, and compare physical and virtual runs.

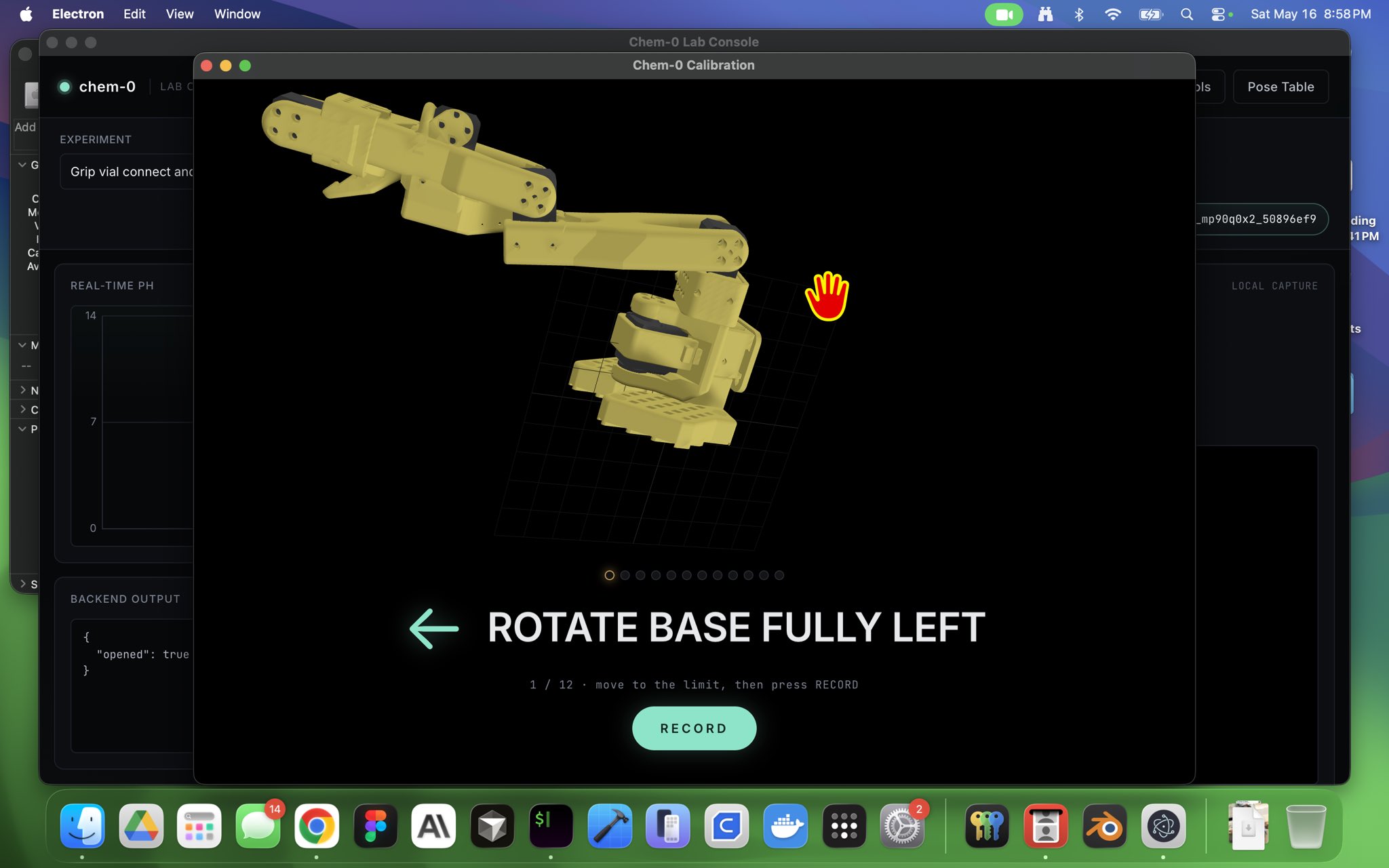

Chem-0 Lab Console overhaul

The world abstraction lets the system represent physical and virtual benches, attach robots and cameras, and keep experiment traces scoped to the environment where they occurred.

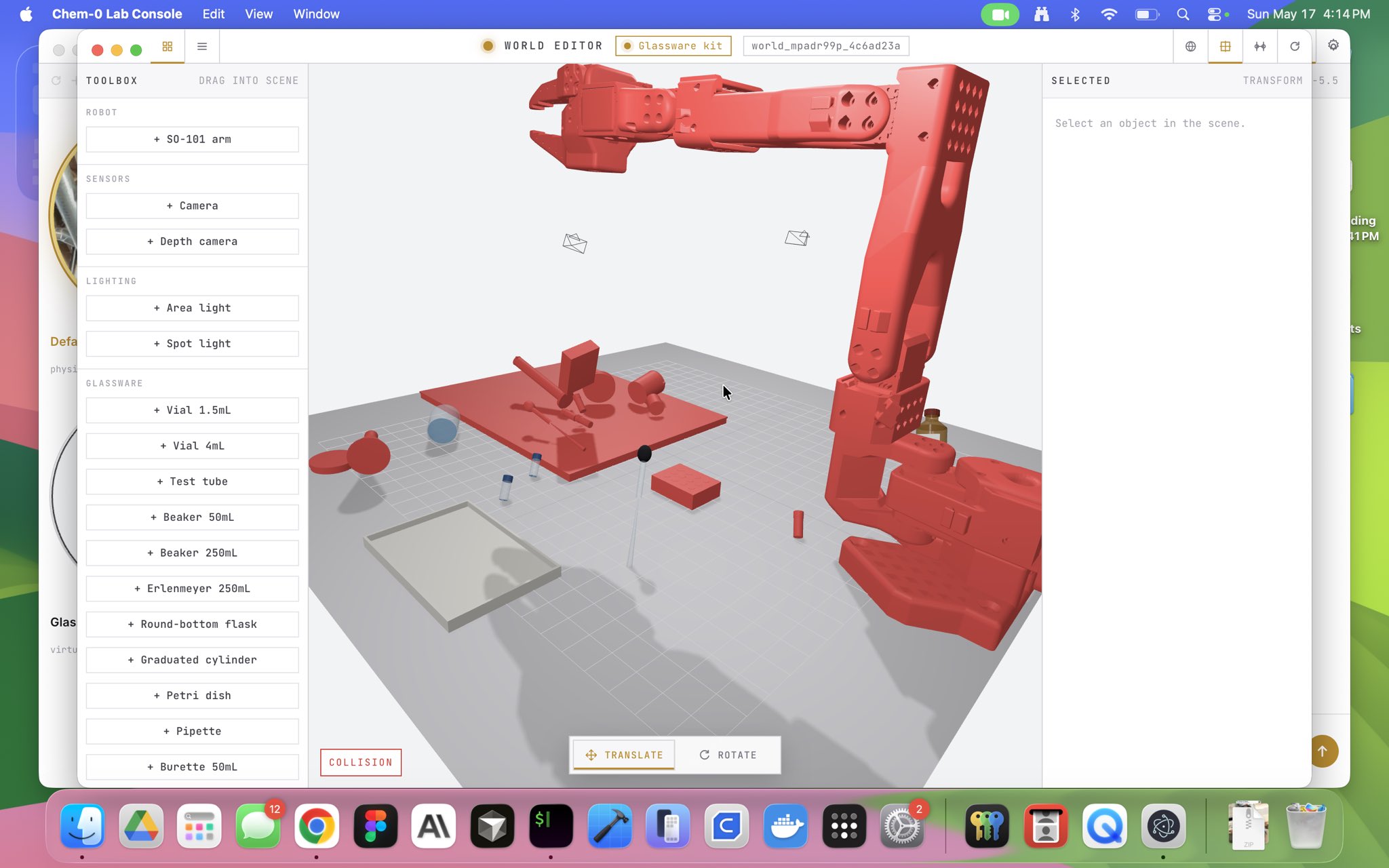

Chem-0 workspace editor

The project also supports multiple physical arms and multiple virtual worlds as a debugging path toward replay, scene inspection, and paired physical/virtual experimentation.

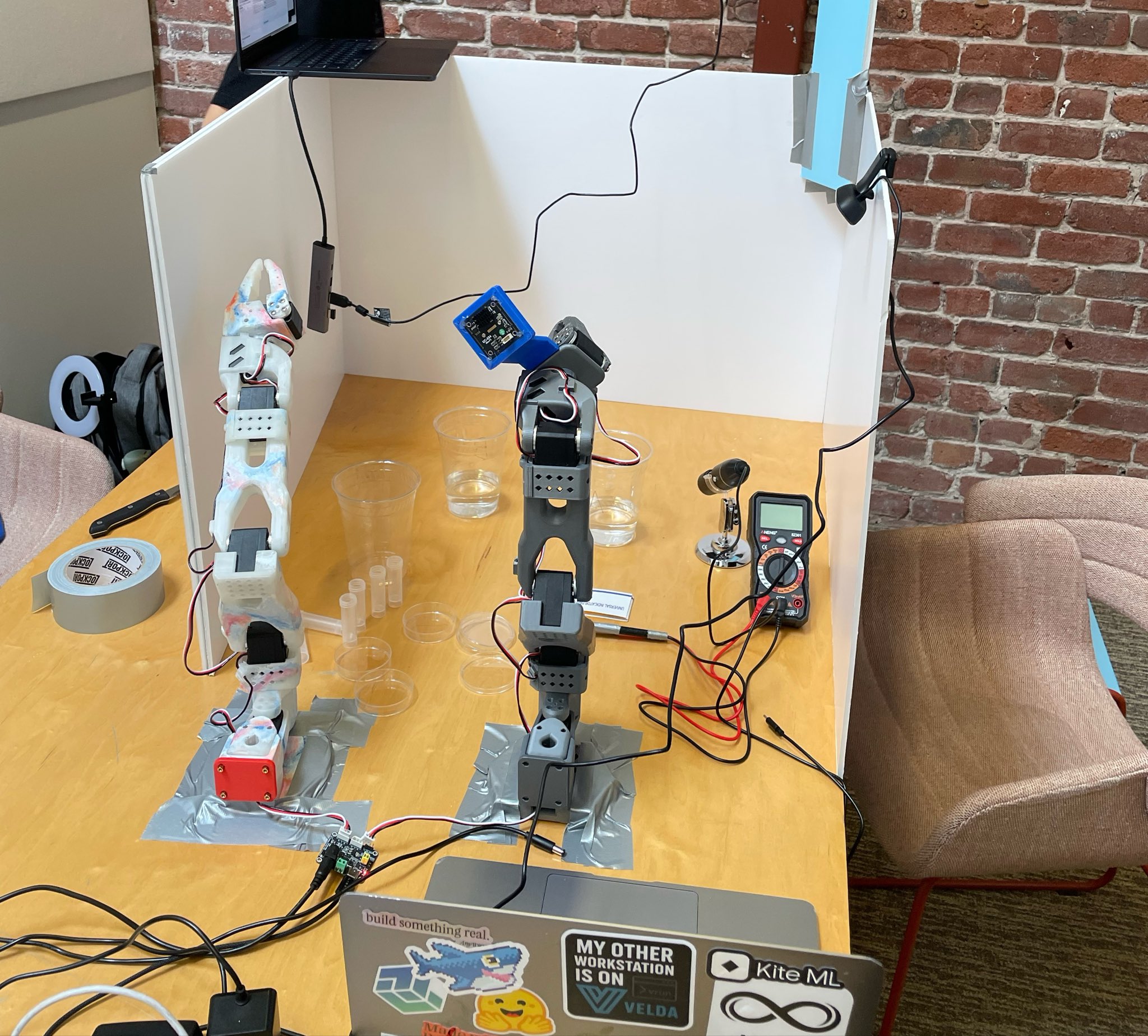

Multiple physical SO-101 arms and virtual worlds in Chem-0

Results

The early result was not autonomous chemistry. It was a clearer picture of what blocks it.

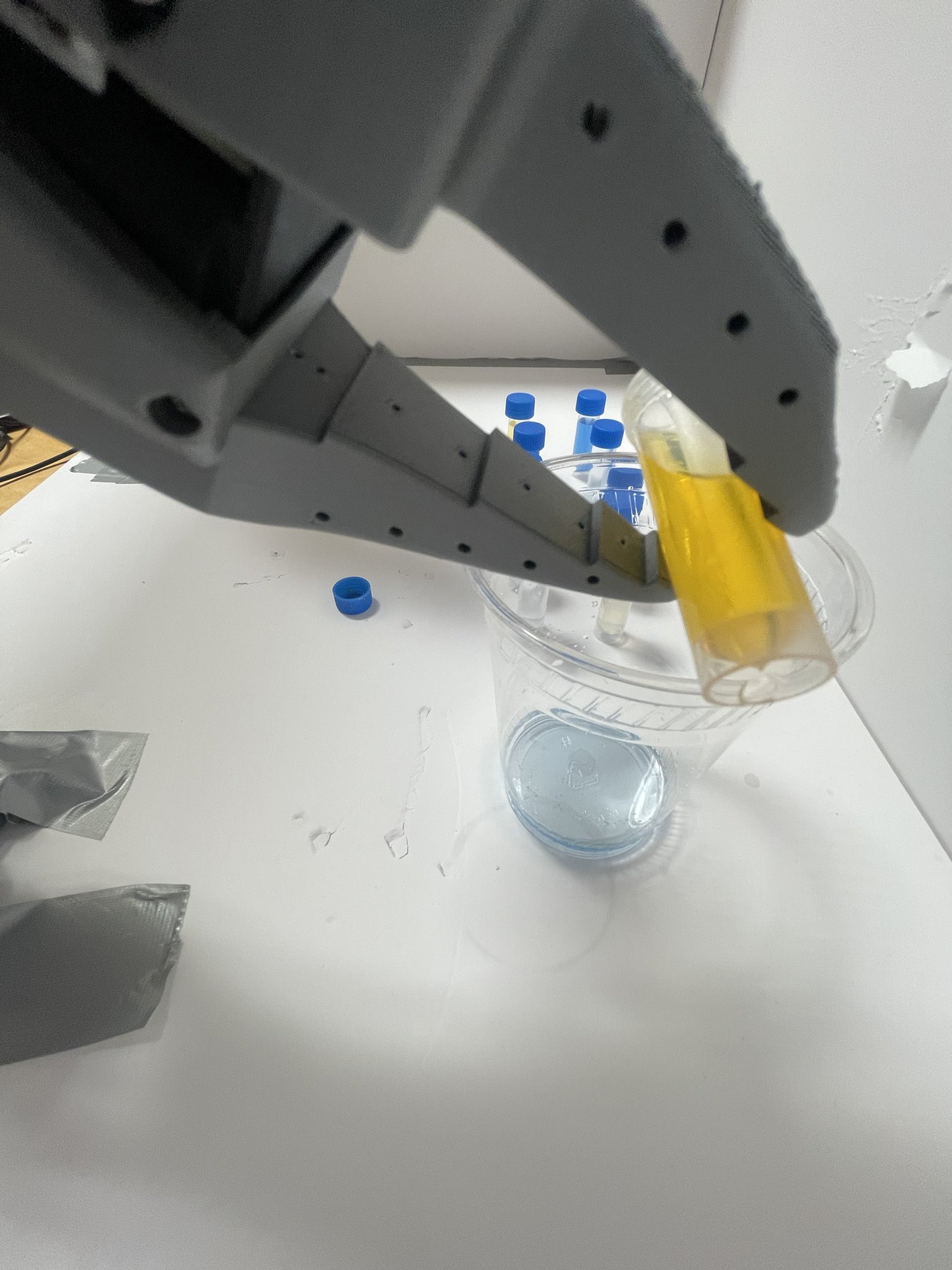

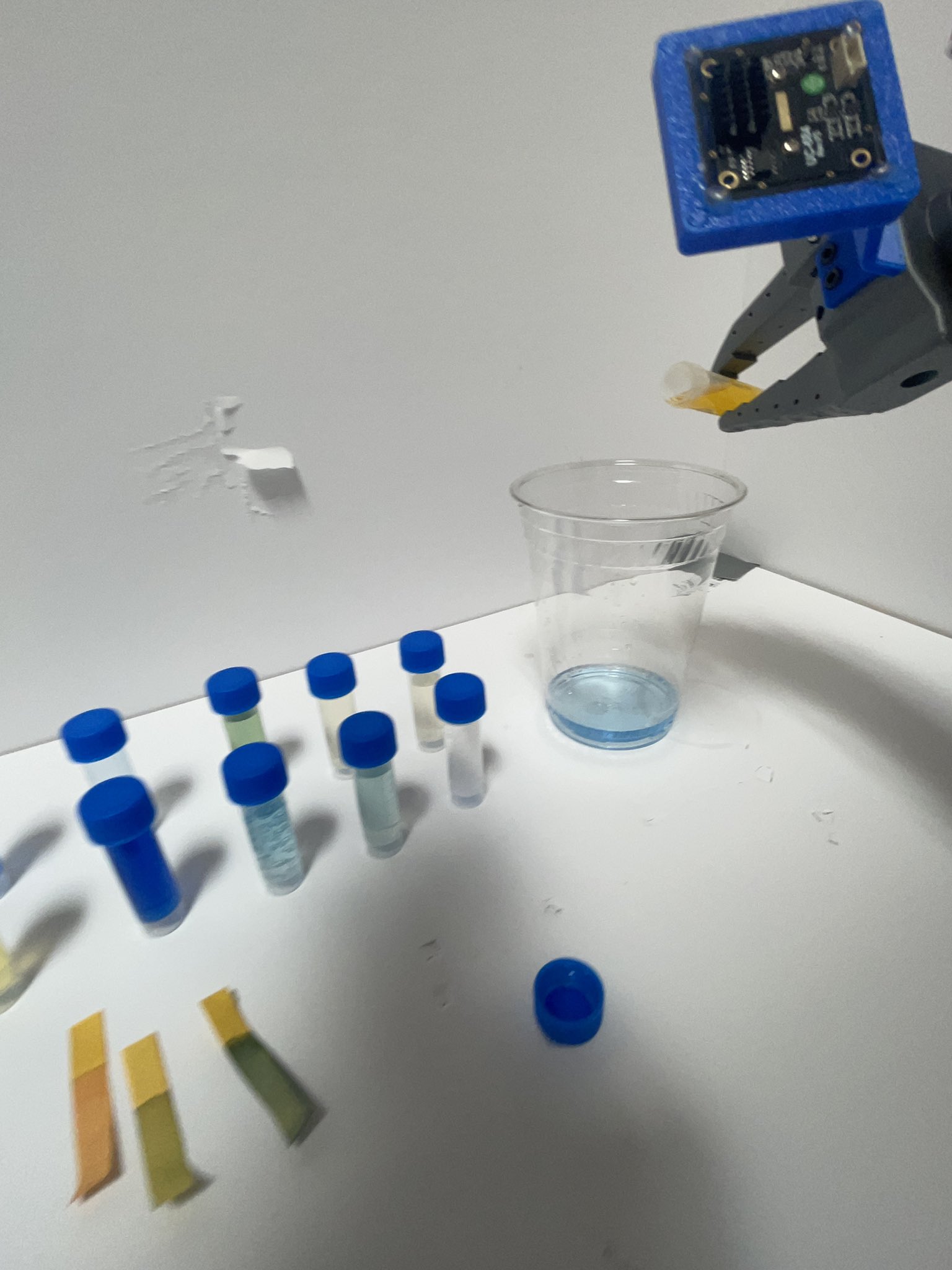

With a pose table, live camera feedback, and constrained movement tools, the agent could move the arm into rough workspace configurations. But when the system tried to grasp a vial, the vial bounced away immediately. The model could understand the scene semantically and still fail physically because a slow visual policy was controlling a rigid gripper against lightweight rigid plasticware.

That failure shifted the project’s center of gravity. The important problems became calibration procedure, local feedback loops, compliant manipulation, coordinate estimation, event memory, and measurement construction.

Research Frame

Chem-0 connects to the broader thesis in The Shape of Inquiry: autonomous scientific agents need to construct measurements, not merely describe what a scientist would do.

The pH-strip task is the minimal experimental aperture: a safe sample, pH paper, calibration card, camera, and manipulator. The goal is not chemical novelty. The goal is a replayable, auditable measurement procedure with explicit uncertainty.

The core quantity is self-effect: whether the agent’s actions causally shape its future observations in a safe, calibrated, uncertainty-reducing way.

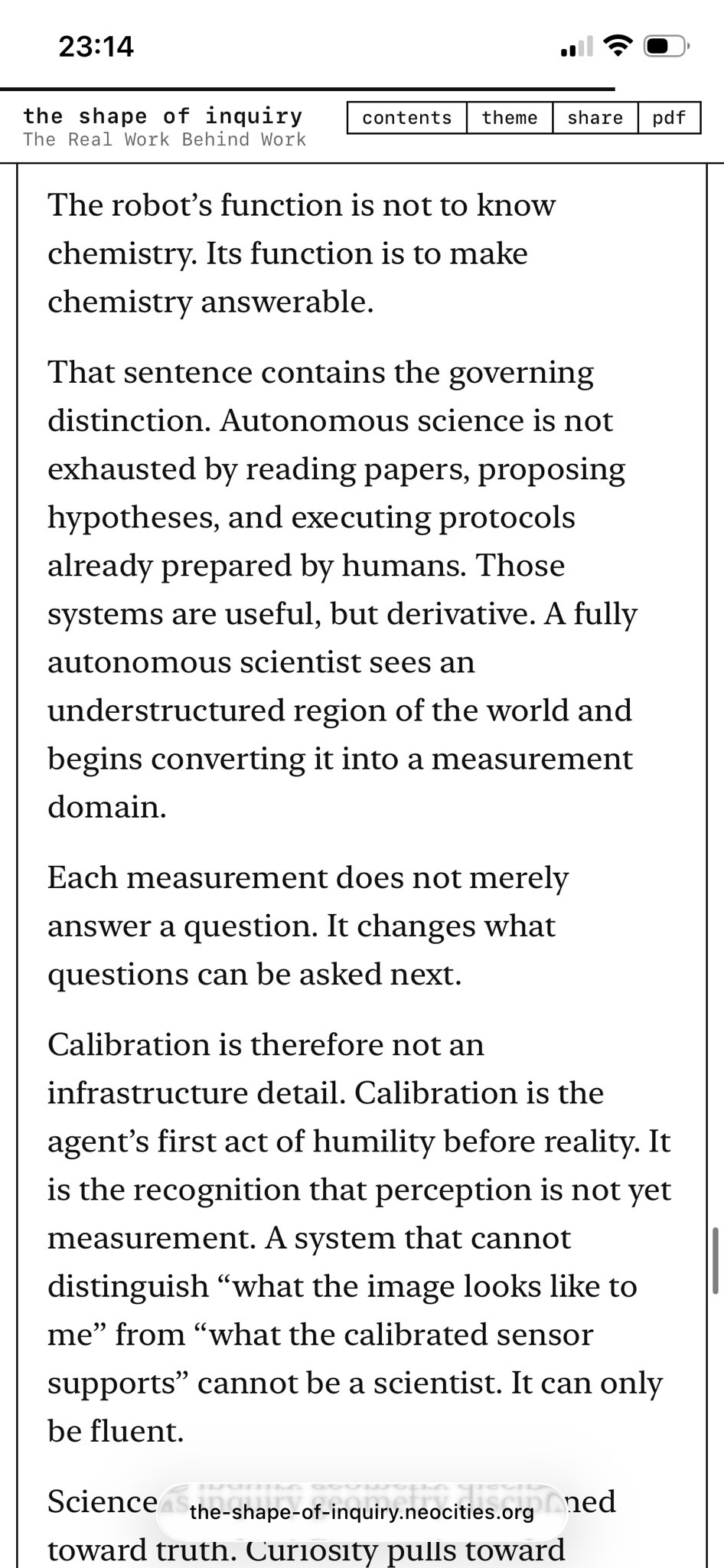

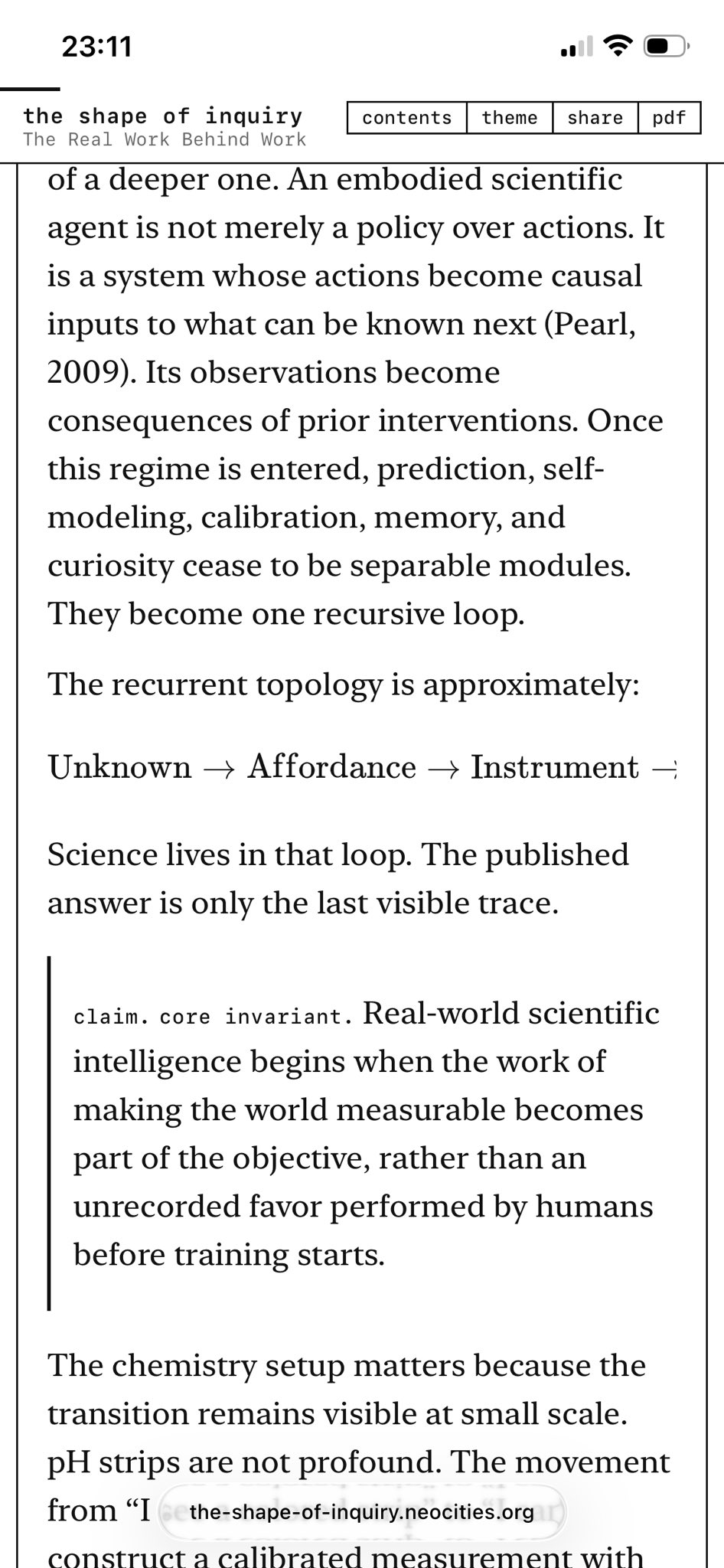

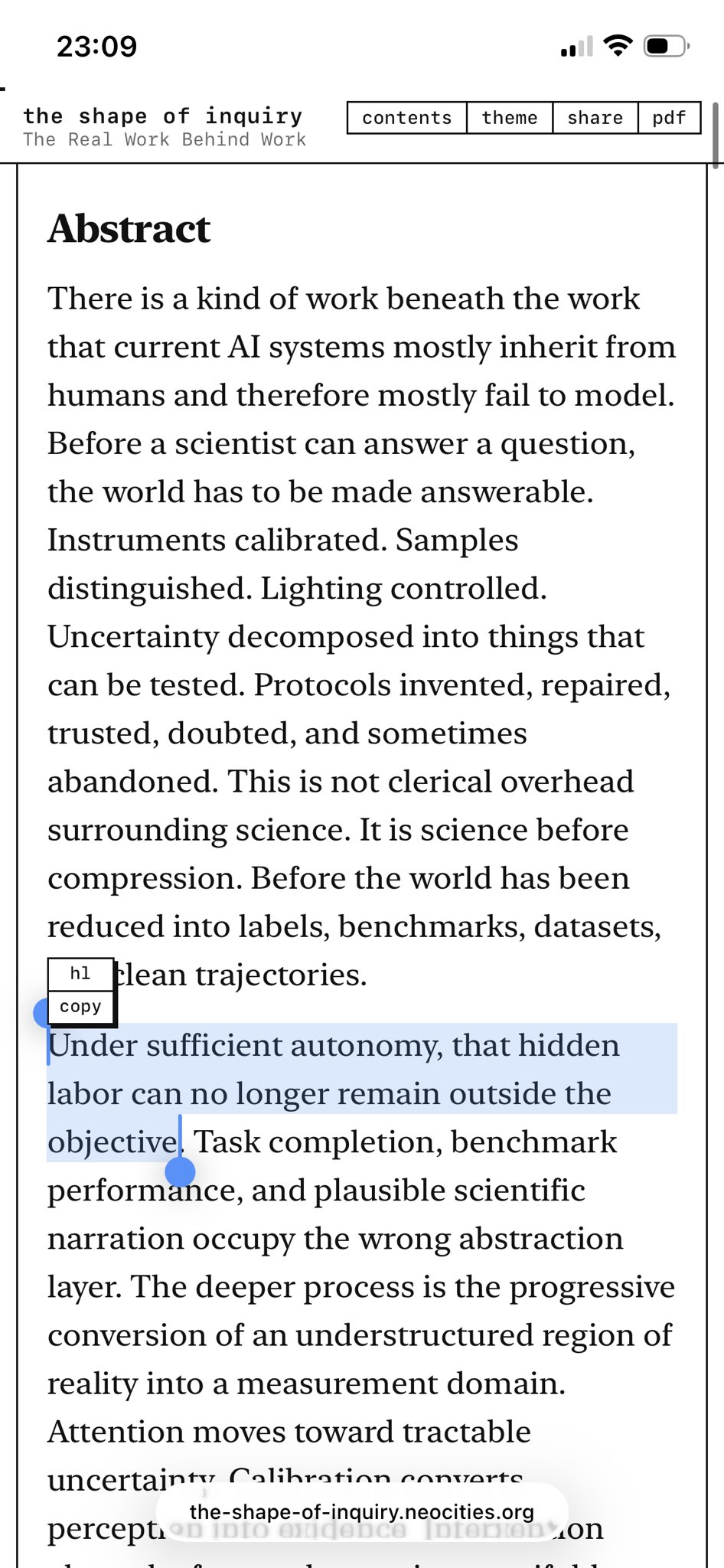

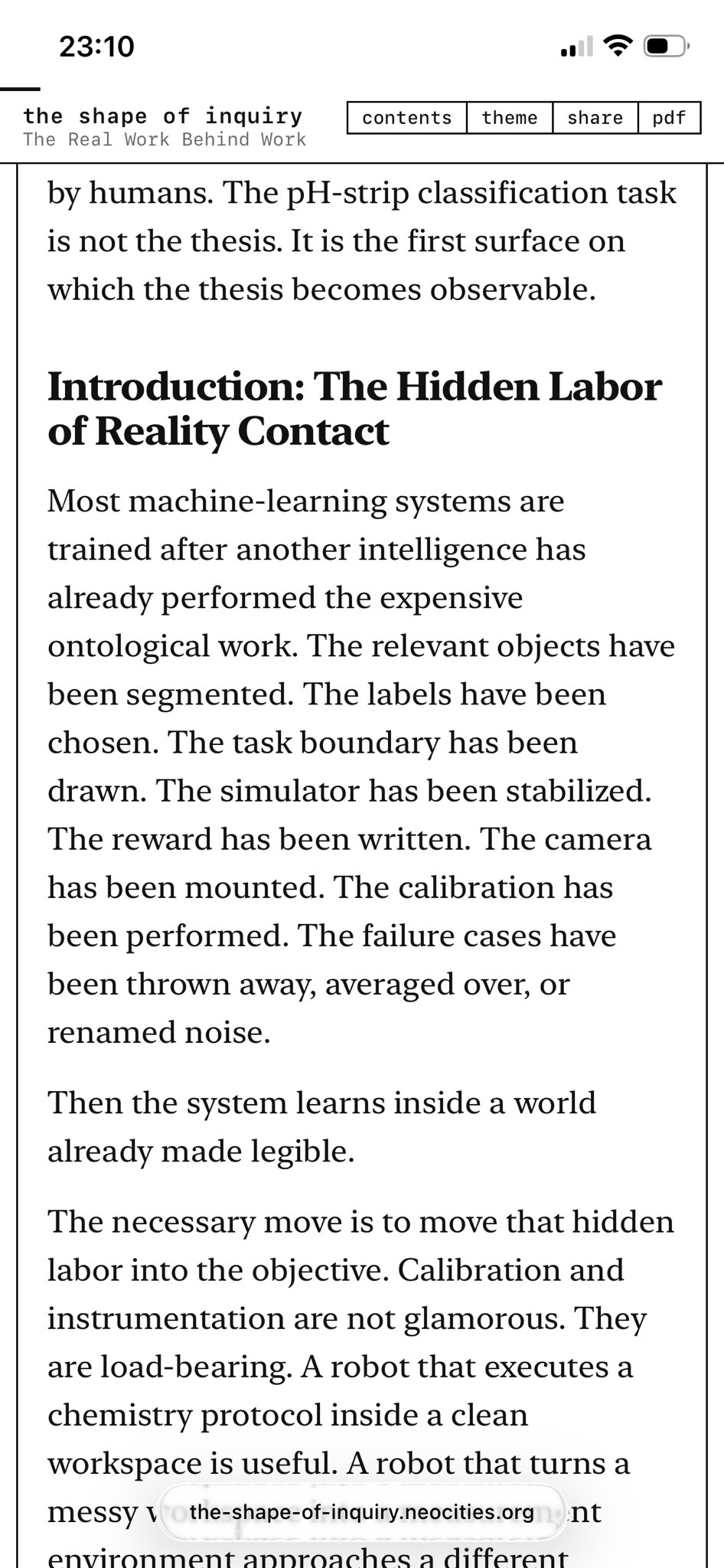

The Shape of Inquiry thesis screenshotThe Shape of Inquiry thesis screenshot on measurement constructionThe Shape of Inquiry thesis screenshot on self-effectThe Shape of Inquiry thesis screenshot on autonomous science

Next

The next version should focus on making simple physical agency reliable before adding more chemistry:

• Add fiducials or AprilTags for camera-to-world calibration.
• Maintain object-centric state with pose estimates and uncertainty.
• Add compliant manipulation or force/tactile feedback.
• Move contact correction into faster local control loops.
• Build a calibrated pH measurement pipeline.
• Enrich the event schema with causal links, belief deltas, calibration state, and failure labels.
• Use replay and held-out trials to measure whether the system improves.

The current direction is less “robot does chemistry demo” and more “infrastructure for event-grounded physical measurement.” The goal is to make embodied agents produce auditable evidence rather than fluent descriptions of what a scientist would have done.
